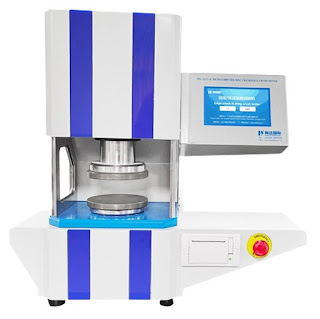

HD-A513-B Edge Pressure Ring Pressure Strength Tester
Applications:
Edge pressure ring pressure strength tester it can be used with a variety of paper packaging materials to conduct a variety of paper quality tests, such as ring pressure, flat pressure, edge pressure, and adhesion tests. It is a testing equipment that combines multiple functions into one.
Features:
>> High-Precision Force Sensor:
The upper and lower limit protection devices are used to automatically return to the position after the overload protection test Automatically judge the crushing force and save the test data
>> Color Touch Screen With Curve Display:
The control software can switch freely in both Chinese and English languages A variety of force value units to choose
<< Structure Features:
Equipped with precision ball screw, aluminum alloy panel, the instrument is durable
>> Function Features:
After testing, the max force value during the test can be automatically displayed and 50 test results can be recorded and saved
Specifications:
> Max. Capacity 200kg
> Control mode LCD display, touch screen
> Load Resolution 1/100,000
> Unit Kgf, Ibf, N
> Load accuracy Within 0.2%
> Result Output Mini-printer (thermal printer)
> Test speed (10±3) mm/min
> Statistics Mean value, max. & min values of the series
> Power 1PH, 220V, 60HZ, 2A (customer specific)
> Dimension of machine 480mm×460mm×550mm
